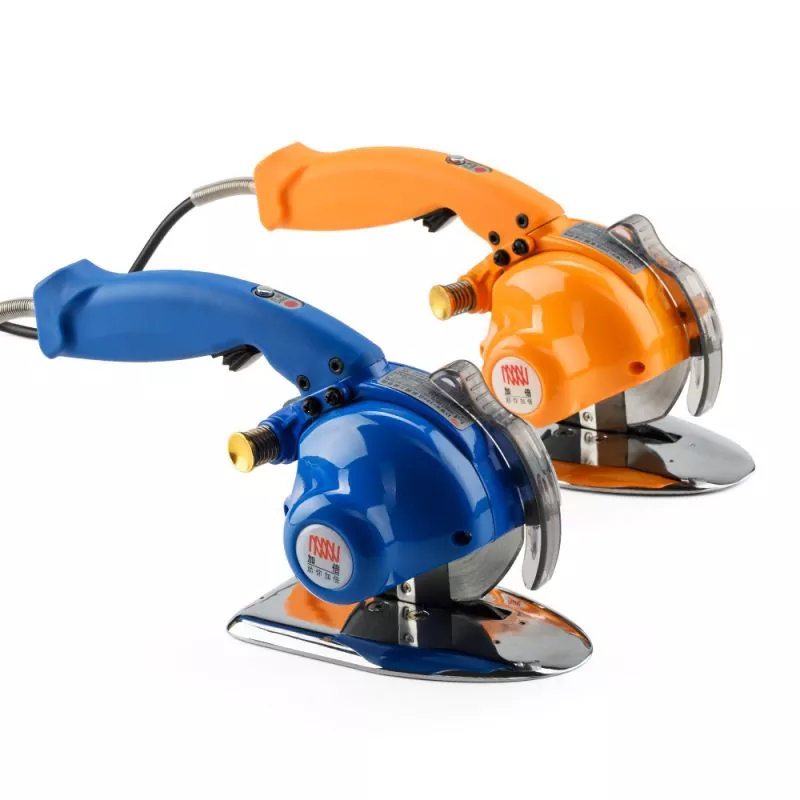

Wired Servo Leather Cutting Machine

Model No.: DWS-125

Product Description

Newest product independently developed by JIABEI TOOL: Wired Servo Leather Cutting Machine. The company has established long-term cooperative relations with many enterprises based on the principle of “customer first, honesty first”. It has gained a good reputation in the industry. With the continuous development and expansion of the company, the company has adopted a diversified product development strategy to cover a broader cutting market.

Interested in This Product?

Your information is secure and confidential

Product Details

Comprehensive information about our cutting-edge manufacturing solution

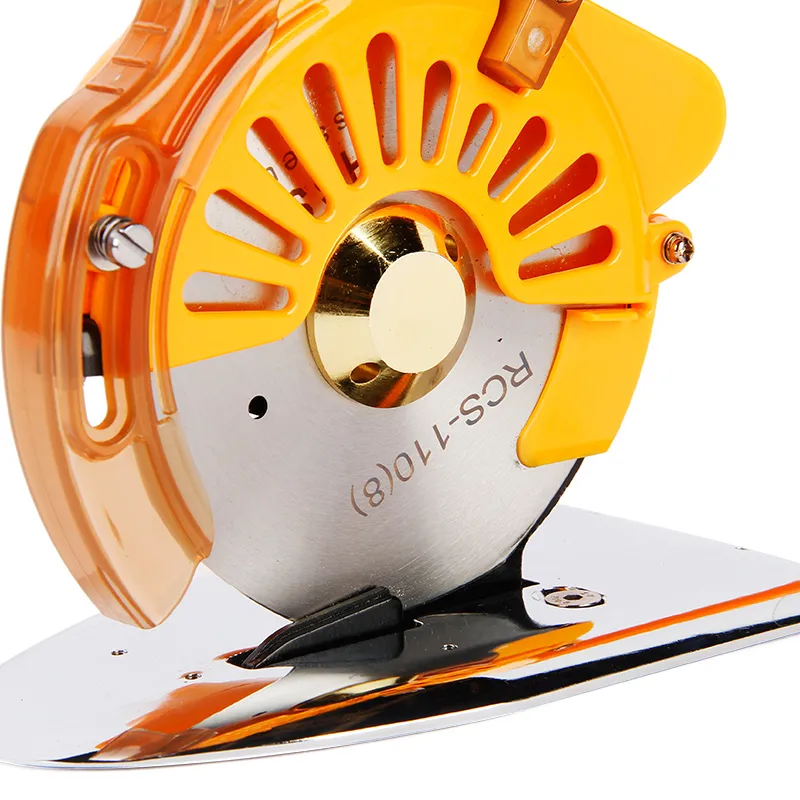

Cutmaster Tool Wired Servo Leather Cutting Machine is made in China. Wired Servo Leather Cutting Machine is equipped with automatic sharpening device on the inside of the round blade. After the blade is blunt, press the yellow button to sharpen the blade as long as it is turned on. The base has four small pulleys, which are easier to push and not easy to fold cloth during the cutting process.

Cutmaster Tool Wired Servo Leather Cutting Machine Parameter (Specification)

Main Features: Powerful Servo Motor:High torque, average comprehensive energy saving is over 80%. Safe Cutting: Humanized design. Low Noise: below 60dB. Adjustable Speed: 4 gears can be adjusted to meet different cutting requests. LED Light: keep work in dark environment. Automatic Grinding: The blade becomes sharp by 3seconds pressing. HSS Blade: more durable than ordinary blade by 5 times. Light Weight: Only 1.1-1.3Kgs for different models.

Model	Voltage	Input power	Blade Size	Cut THICKNESS	Speed	N.W
DWS-100	AC 220V±20%	3.6W-200W	100MM	27MM	800/950/1100/1250/1400RPM	1.1KG
DWS-100	AC 110V±20%	3.6W-200W	100MM	27MM	800/950/1100/1250/1400RPM	1.1KG
DWS-110	AC 220V±20%	3.6W-250W	110MM	32MM	800/950/1100/1250/1400RPM	1.15KG
DWS-110	AC 110V±20%	3.6W-250W	110MM	32MM	800/950/1100/1250/1400RPM	1.15KG
DWS-125	AC 220V±20%	3.6W-300W	125MM	40MM	800/950/1100/1250/1400RPM	1.3KG
DWS-125	AC 110V±20%	3.6W-300W	125MM	40MM	800/950/1100/1250/1400RPM	1.3KG
Inner Box(1pcs):31.52113CM Master Carton(10pcs):663242.5CM

Cutmaster Tool Wired Servo Leather Cutting Machine Feature And Application

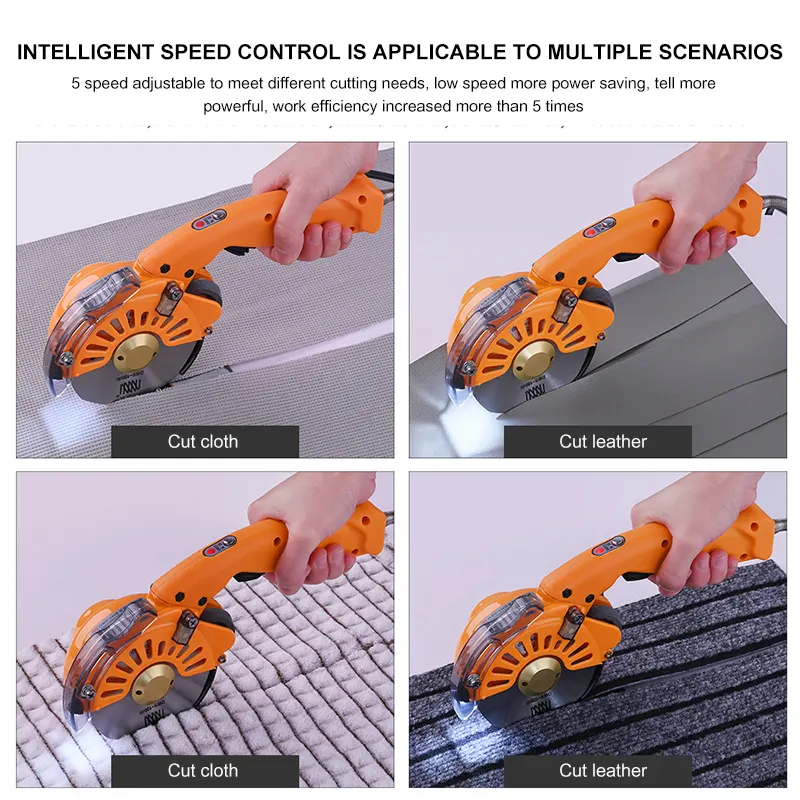

Cutmaster Tool Wired Servo Leather Cutting Machine are suitable for cutting clothing, leather products, textiles, chiffon, paper making blankets, carpets, cotton, handicrafts, furniture, umbrella industry, hat industry, bulletproof clothing, sofa, bamboo mat, bamboo charcoal fiber, etc.
